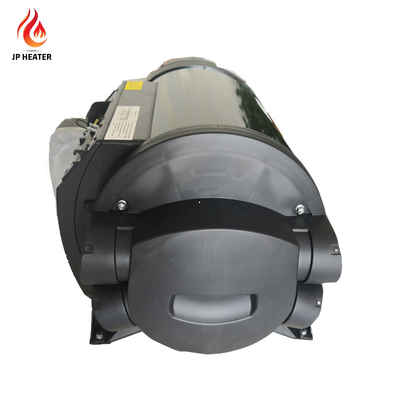

It combines a heater and hot water generator in one appliance. The integrated electric heating elements heat water very rapidly.
Set the room and water temperature of JP 6E on the digital control panel.
The structural drawing of the JP Combi heater shows the individual functions.
Only one heater for both vehicle heating and hot water supply
1. All-purpose: It can be operated with fuel or diesel, electricity or in hybrid mode.
2. Convenience: Automatic temperature control can be realized in conjunction with A/C
3. High efficiency: self-suf
Rated Voltage | DC12V | ||
Operating Voltage Range | DC10.5V~16V | ||
Short-term Maximum Power Consumption | 8-10A | ||
Average Power Consumption | 1.8-4A | ||
Fuel | Diesel | ||
Diesel Heat Power (W) | 2000 | 4000 | |
Fuel Consumption (g/H) | 240 | 510 | |
Quiescent Current | 1mA | ||
Warm Air Delivery Volume m3/H | 287max | ||
Water Tank Capacity | 10L | ||
Maximum Pressure of Water Pump | 2.8bar | ||
Maximum Pressure of System | 4.5bar | ||
Rated Electric Supply Voltage | ~220V | ||
Electrical Heating Power | 900W | 1800W | |
Electrical Power Dissipation | 3.9A | 7.8A | |
Working (Environment) Temperature | -25℃~+80℃ | ||
Working Altitude | ≤5000m | ||
Weight (Kg) | 15.6Kg | ||
Dimensions (mm) | 510×450×300 | ||
Protection Level | IP21 |
The integrated heater has high power and high heat efficiency. It is suitable for the supply of hot water and warm air for self-propelled motorhomes and trailer motor homes.
Bluetooth APP operation
