Features

Specifications

Rated Voltage: 12 Volt

Water Capacity: 10L

Working Temperature: -25℃~+80℃

Working Altitude: 0-5000m

Package Szie: 600*485*400mm(main Heater Carton) 600*485*240mm(accessory Carton)

Package Weight: 27kg

Operating Voltage Range: DC10.5~16V

Gas Pressure: 30mbar

Short-term Maximum Power Consumption: 5.6A

Heater Weight: 15.6kg

Basic Infomation

Place of Origin: China

Brand Name: jp

Certification: CE&E4

Model Number: FJH

Payment & Shipping Terms

Packaging Details: Carton box

Delivery Time: 5-7 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000 sets / month

Gallery

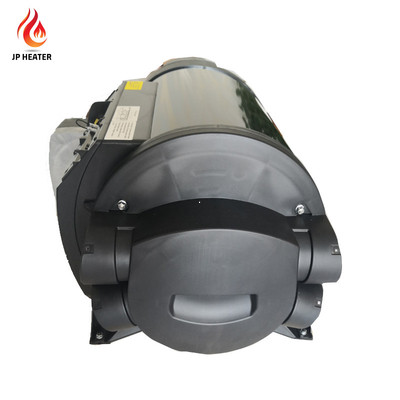

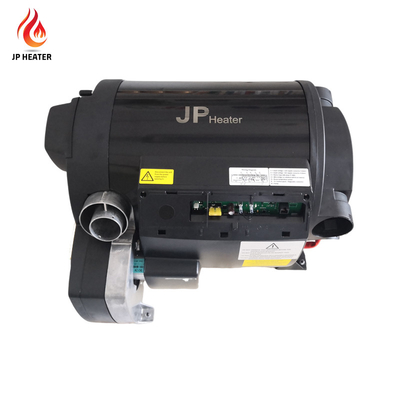

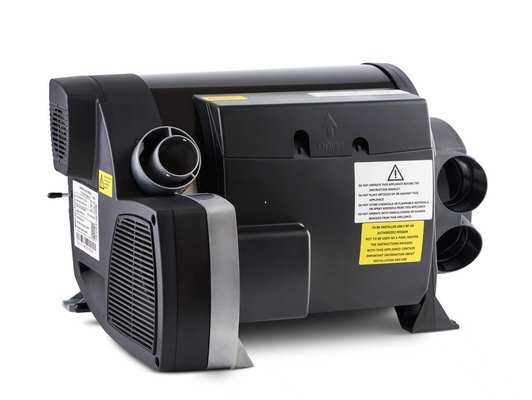

Air And Water Combi Hybrid Heater 6KW 12V 10L water tank Similar to Truma

Product Description

Product name	JP Combi Heater	Heating Voltage	12V

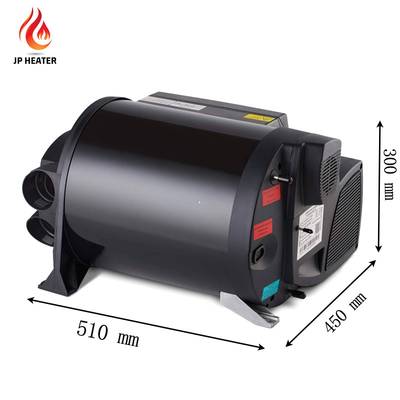

Heater Size	510450300MM	Gas Pressure	30mbar
Certification	CE	Warm Air Delivery Volume m3/h	287max
Working (Environment)	-25℃～+80℃	Maximum Pressure of System	4.5 bar
Working Altitude	≤5000m	Short-term Maximum Power Consumption	5.6A
Average Power Consumption	1.3A	Water Tank Capacity	10L
Brand	JP	Warranty	2 years
Heater Weight(without water)	15.6kg	Package	Carton
Package Size	600485400mm(main heater carton) 600485240mm(accessory carton)
Package Weight	21kg(main heater carton)6kg(accessory carton)
Applicable vehicle	Trucks, Construction Vehicles, Buses, Motor Homes, Yacht,Tent,Agricultural Vehicles, Diesel Vehicles, Etc.

The JP Combi combination boiler and heater range is a popular choice for heating both water and living spaces in your campervan, motorhome or caravan. The Combi heaters are both energy efficient and quiet in operation, and incredibly compact for the performance heating they offer.

Great for caravan or motorhome adventures in both summer and winter

Function

The heater is a hot water and warm air integrated machine, which can provide domestic hot water while heating the occupants. This heater allows use during driving. This heater also has the function of using local electricity heating.

In hot water warm air work mode, this heater can be used to heat both the room and the hot water. If only hot water is needed, please choose hot water working mode.

When the ambient temperature is below 3°C, please empty the water in the water tank to prevent freezing of the water tank.

There are three energy options to choose from:

Diesel Mode

Heater automatic adjust the power.

Electrical Mode

Manually select the 900W or 1800W heating mode according to the power supply capacity of the RV camp.

Hybrid Mode

When the power demand is low (for example, maintaining the room temperature stage), the electrical heating is preferred. Until the city electricity cannot meet, the gas heating is started, and the gas heating function is turned off first in the power adjustment phase. In hot water working mode,gas mode or electrical mode is used to heat the tank.The tank temperature can be set to 40°C or 60°C.
